Manufacture PUR sea water resistant cable supplier | Global leading cable manufacturer

PUR sea water resistant cable supplier | Global leading cable manufacturer

Specification

Basic structure	Conductor+Insulation+Jacket
Conductor	Plain Copper/ Tinned Copper
Insulation	EPR
Braid	Kevlar/ Plain Copper/ Tinned Copper
Jacket	PUR/TPE/PCP

Inquire Now Next Product

INTRODUCTION

Applications of China Derul brand seawater-proof underwater equipment special cables:

PUR waterproof cable designed with polyether polyurethane material as sheath have excellent waterproof and seawater corrosion resistance. They are specially used in a variety of occasions and environments with waterproof requirements and can be immersed in water for long periods of time. Shanghai Jiarou Cable adopts a flexible structure to design this type of cable to ensure the cable's fixed or mobile installation and use needs underwater.

China Derul brand seawater-proof underwater equipment cable | Product design description:

The conductor structure of bare copper or tinned copper can be designed, and multiple strands are twisted and bundled;

Various structures such as power type, control type, data signal transmission feedback type, and co

mposite type can be designed;

The shielded structure uses aluminum foil Mylar/tinned copper wire braiding to design the shielding layer of the cable. According to needs, a separate shielding + total shielding/overall shielding structure can be designed;

Select galvanized tensile soft steel wire rope, Kevlar tensile fiber, TP rope and other materials to design the load-bearing tensile components of the cable;

Single or double layer sheath can be designed;

The tensile and torsion-resistant warp and weft fiber braid can be designed as needed;

The waterproof polyurethane PUR material is used as the outer sheath design of the cable;

China Derul brand seawater-proof underwater equipment cable|Product main parameters:

Rated voltage: core wire <0.5mm2, 300/300V; core wire ≥0.5mm2, 300/500V;

Test voltage: 2000V

Temperature range: -30~+80℃;

Mobile bending installation radius: 7.5~10*D (cable outer diameter)

Comply with certification: CE RoHS;

For more Deru high-quality waterproof cable products, welcome to consult us

ADVANTAGES

t has excellent soft movement performance and is suitable for underwater fixed or mobile installation applications;

Shielded structural design, the cable has excellent anti-electromagnetic interference performance;

A variety of load-bearing component designs enhance the tensile performance of the cable, and its tensile strength can be customized according to needs;

The anti-torsion structural design ensures the anti-torsion requirements of the cable and avoids problems such as twisting, spinning, and deformation of the cable during frequent movement;

The waterproof polyurethane material sheath design makes the cable excellent in waterproofing and seawater corrosion resistance. The cable also has high wear resistance, oil resistance, acid and alkali corrosion resistance, temperature resistance, weather resistance, tear resistance, aging resistance, mechanical fatigue resistance and other properties;

CUSTOMIZATION CAPABILITY

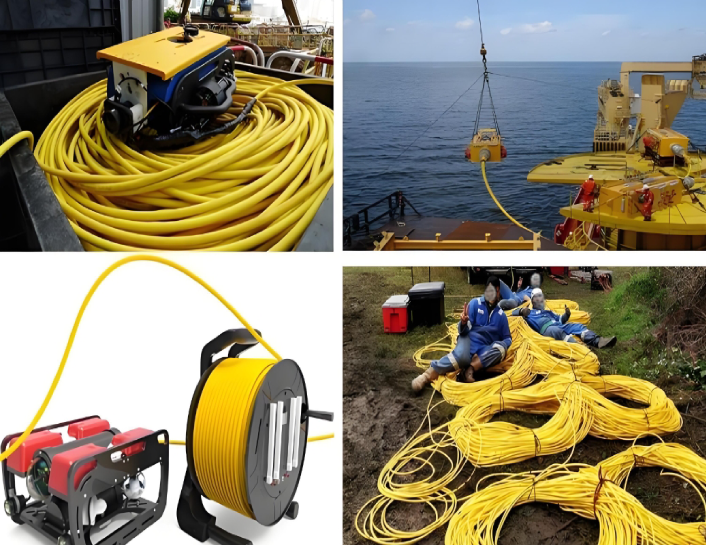

Whenever standards are not enough!

Multiple strands of finely twisted oxygen-free copper wire, conforming to VDE0295 CLASS 5 standard

Nitrile rubber material is used as the outer sheath, which has high strength and high wear resistance, effectively protecting the cable from external

deformation due to force, greatly extending the service life of the cable

Technical support for foreign cables from Germany, France, Italy and other countries, which can replace imported cables and is cost-effective

Customized products can be designed according to the actual usage conditions of customers.

Short delivery cycle and fast delivery

FAQ

Q: Is Derul Cable a manufacturer or a trading company?

A: Derul Cable is a special cable manufacturer based in Shanghai.

Q: Is the price negotiable?

A: Yes, the price is negotiable according to the purchase quantity.

Q: What is the regular MOQ for the cable?

A: Any quantity is okay to purchase for product in stock. For product that need to be manufactured after the order, the MOQ is usually 100-200 m per type.

Q: How can I get samples?

A: After payment for the potential cost including express freight and the confirmation of the cable's dimension and structure , we will arrange for the sample and send directly to your door.

Q: Is OEM or ODM service available?

A: OEM and ODM services are both available. You may provide us with your requirement and we will evaluate it to push forward.

Q: What is the regular production time?

A: For regular quantity, it usually requires about 15-25 days to produce.
