● Application scope of Deru ROV underwater cable:

Equipment for shallow sea and deep sea survey operations.

Mainly used underwater cable-operated remotely operated submersible equipment

Underwater robots, underwater equipment power supply, cable equipment signal control, etc.

It is suitable for high watertight, twist-resistant multi-core comprehensive cables in the fields of ships, offshore oil platforms, deep sea resource exploration and other fields. It can also be used for various types of submersible motor lead wires, telescopic/drag wires and cables in deep water, and diving Pumps and various underwater working electrical appliances are connected to the power supply from underwater to above water.

● Technical background of Deru ROV underwater cable:

Underwater operations, such as in the ocean, are usually carried out in waters of hundreds of meters or even kilometers. In addition to the necessary hardware and equipment, this kind of operation also requires the use of cables for transmitting power and signal control; for this kind of environment The requirements for cables used under water are often very demanding. Ordinary cables have the following shortcomings. On the one hand, because they are operated on water, the number of insulation layers of the cable is often increased to ensure the insulation of the cable, so that the cable will become very heavy; On the one hand, most of the cables used in engineering equipment cannot float in the water. In this way, when the engineering equipment moves forward, the more the cables fall underwater, the more the burden of moving the engineering equipment increases, and it is easy to cause damage to the cables. Both ends fell off; furthermore, the visibility of the cable is greatly reduced when it is submerged in water. It is easily damaged by creatures or rocks in the water when being dragged, and the damage cannot be observed in time. Therefore, there is an urgent need for a cable that can Cables that float on water, have good flexibility, ideal mechanical strength, and good water-blocking properties are used for underwater operations. Therefore, our company designs and produces zero-buoyancy floating cables to meet market demand.

Highly flexible, resistant to bending and twisting, excellent waterproof performance and seawater corrosion resistance; can be designed and produced to withstand large mechanical external forces; elastomer polyurethane material is highly wear-resistant, remains flexible at low temperatures, and has stable pressure resistance; proven safe and reliable in use in many situations Use below.

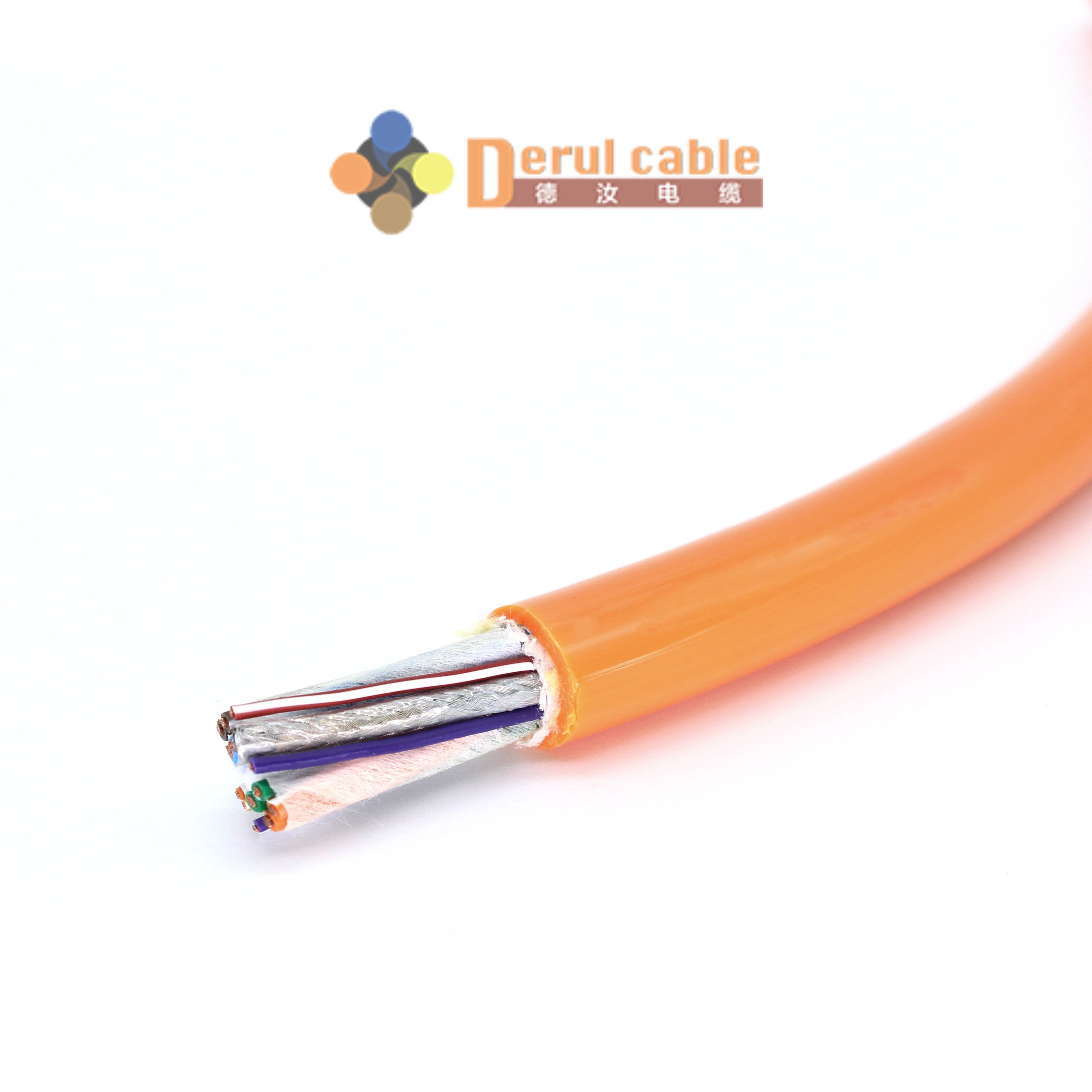

● Deru ROV underwater cable Cable structure:

Conductor: Multi-strand finely twisted oxygen-free copper wire, in line with VDE0295 CLASS6 standard (the conductor requires tinned copper wire and needs to be stated in advance)

Insulation: TPE/TPEE/FEP and other waterproof materials

Tensile layer: Kevlar fiber filling or woven

Wrapping: Using non-woven fabric/polytetrafluoroethylene (raw material tape) wrapping

Water-blocking layer: water-blocking glue or vulcanization, etc., can be customized and produced according to horizontal or vertical water blocking requirements.

Outer sheath: TPE/PUR/matte PUR material

Color: yellow, blue or other colors (optional colors)

● Deru ROV underwater cable Technical Parameters:

Rated voltage: 300/500V

Test voltage: 2500V/5mim (AC)

Mobile installation bending radius: 5~7.5×D

Load-bearing tensile strength, waterproof diving depth: can be produced according to actual use needs

Mobile installation operating temperature: -40℃~+100℃ (the required operating temperature can be produced according to actual use requirements)

Ground protection core wire: G=including yellow/green two-color ground protection core wire

Wear-resistant, tear-resistant and scratch-resistant

Resistant to weathering, hydrolysis and twisting

Has higher oil resistance

Maintain flexibility and elasticity at low temperatures

Low tack surface
