High Quality PUR polyurethane underwater cable supplier

PUR polyurethane underwater cable supplier | rov underwater cable manufacturer

Specification

Basic structure	Conductor+Insulation+Jacket
Conductor	Plain Copper/ Tinned Copper
Insulation	EPR
Braid	Kevlar/ Plain Copper/ Tinned Copper
Jacket	PUR/TPE/PCP

Inquire Now Next Product

INTRODUCTION

derulPUR polyurethane comprehensive cable application:

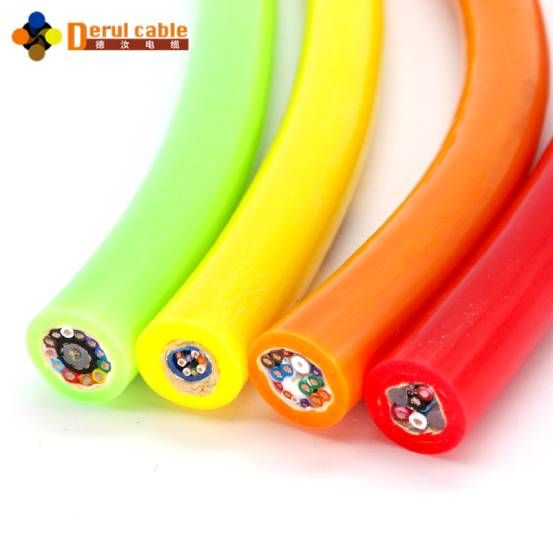

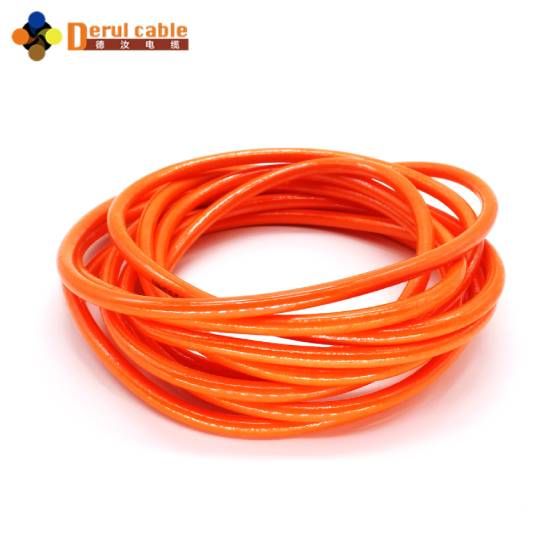

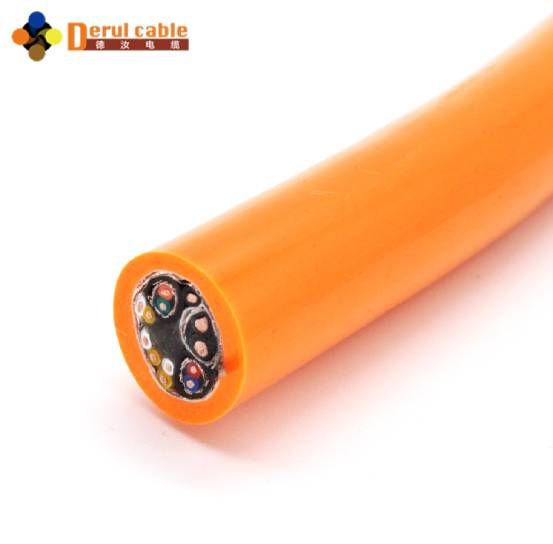

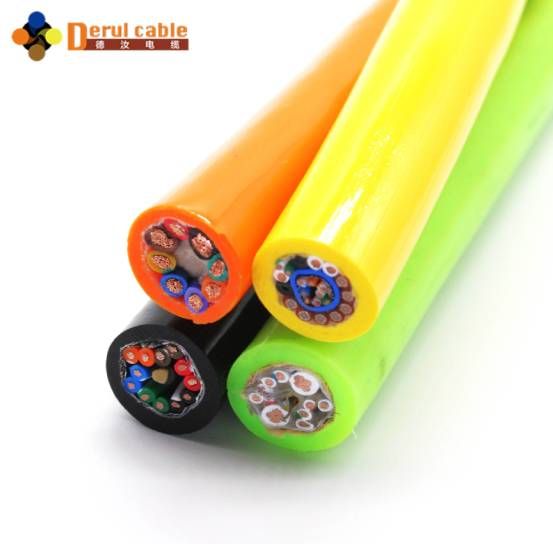

Seawater-proof PUR polyurethane comprehensive cable is composed of Gigabit network cable, power cable and 485 wire. It is suitable for control connection cables for underwater equipment such as underwater camera robots. Mainly used in underwater detection of robots, underwater camera monitoring, underwater operations, marine fisheries and other underwater fields. The main functions are measurement, monitoring, exploration, etc.

derulPUR polyurethane comprehensive cable product features:

The product has the characteristics of wear resistance, bending resistance, cold resistance, acid and alkali resistance, corrosion resistance, tensile resistance, and seawater resistance. The cable structure is soft, easy to install, has stable electrical performance in high temperature (high cold) environment, outstanding anti-aging performance, and long service life. .

High-strength Kevlar filled braid has tensile strength, 20-1000KG (optional), deep waterproof and water pressure resistance 100-3000M (optional)

Coaxial cable: 50/75 ohm-2/3/5/7 (optional)

Wrapping material: flexible non-woven tape

Shielding structure: tinned copper wire braided copper mesh shielding, density above 85%, plus aluminum foil wrapping for 100%

Sheath material: Imported special seawater-proof PUR polyurethane material

Voltage resistance level: 100/300/500/1000/3000M (optional)

Tensile strength: 100/300/500/1000/3000/10000KG (optional)

Sheath color: black, yellow, orange (other colors optional)

derul PUR polyurethane comprehensive cable technical parameters:

Rated voltage 300/300V

Test voltage: 2000V

Fixed installation: -30℃ to +105℃; mobile installation: -25℃ to +105℃

Radiation resistance: 5×107cJ/kg

Remarks: We can provide samples and drawings for customized production of various cable series products.

ADVANTAGES

High-strength Kevlar filled braided tensile strength, 20-1000KG (optional), deep waterproof and water pressure resistance 100-3000M (optional)

CUSTOMIZATION CAPABILITY

Whenever standards are not enough!

Considering different working conditions and equipment to be applied to, Derul's products are highly customized. The high customization of our cables can make sure that our products can best meet the demands in your practical application. We welcome you to send an inquiry with specific requirements to our professional sales, and we will provide a technical sheet with drawings of the cable and detailed specifications to you, and of course, a competitive quotation will be send to you soon after your confirmation on the technical sheet. This can lead to your successful and efficient purchasing.

You don't need to worry about the time cost of your customized purchasing. As the original manufacturer, we provide quick-response and "solution at once" services. Comparing to less-efficient communication about technical and quality issues with trading companies, we give our customers efficient feedback to every question raised from them, this is possible because of the close interconnection between our workshop, engineers and sales people.

FAQ

Q: Is Derul Cable a manufacturer or a trading company?

A: Derul Cable is a special cable manufacturer based in Shanghai.

Q: Is the price negotiable?

A: Yes, the price is negotiable according to the purchase quantity.

Q: What is the regular MOQ for the cable?

A: Any quantity is okay to purchase for product in stock. For product that need to be manufactured after the order, the MOQ is usually 100-200 m per type.

Q: How can I get samples?

A: After payment for the potential cost including express freight and the confirmation of the cable's dimension and structure , we will arrange for the sample and send directly to your door.

Q: Is OEM or ODM service available?

A: OEM and ODM services are both available. You may provide us with your requirement and we will evaluate it to push forward.

Q: What is the regular production time?

A: For regular quantity, it usually requires about 15-25 days to produce.
