Universal Twisted Pair Cable | Shielded | Super Flexible

Universal Twisted Pair Cable | Shielded | Super Flexible - China derul cable

Specification

Basic structure	Conductor+Insulation+Jacket
Conductor	Plain Copper/ Tinned Copper
Insulation	EPR

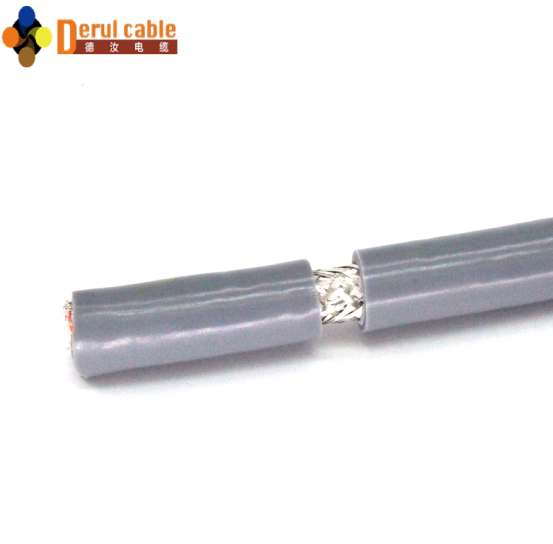

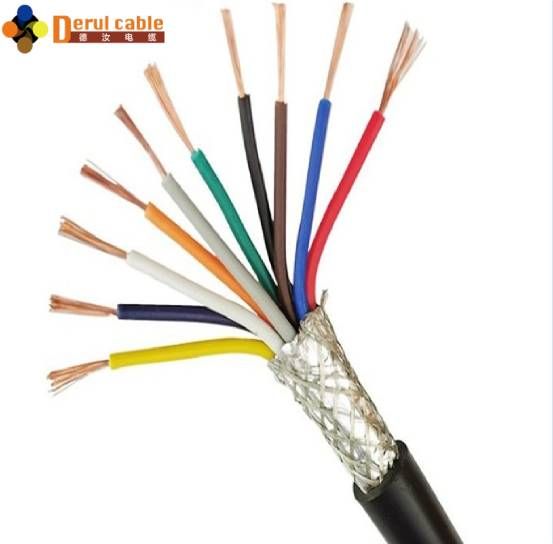

Braid	Kevlar/ Plain Copper/ Tinned Copper
Jacket	PUR/TPE/PCP

Inquire Now Next Product

INTRODUCTION

derul is a manufacturer of high-flexible twisted pair cables, focusing on the field of high-flexible cables, direct sales from manufacturers, and quality assurance.

Application scope of derul high flexible twisted pair cable:

Used where frequent, continuous repetitive movements are required, and also where there is moderate mechanical stress with free movement.

Twisted cable is more suitable for situations that are prone to signal interference. The cable adopts a twisted pair structure, which can effectively reduce the interference between wire pairs and ensure stable transmission of data and signals.

Highly flexible twisted pairs are used in drag chains and movi

ng mechanical parts. When used together with drag chains, the effect is better.

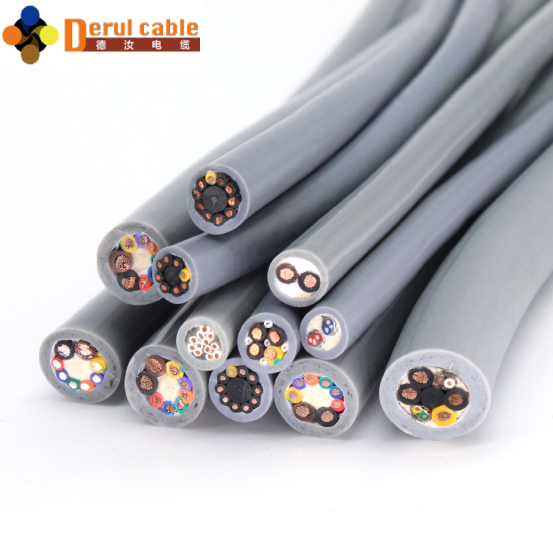

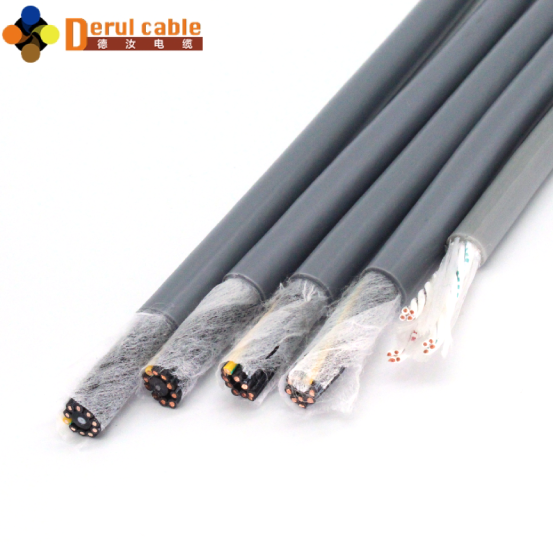

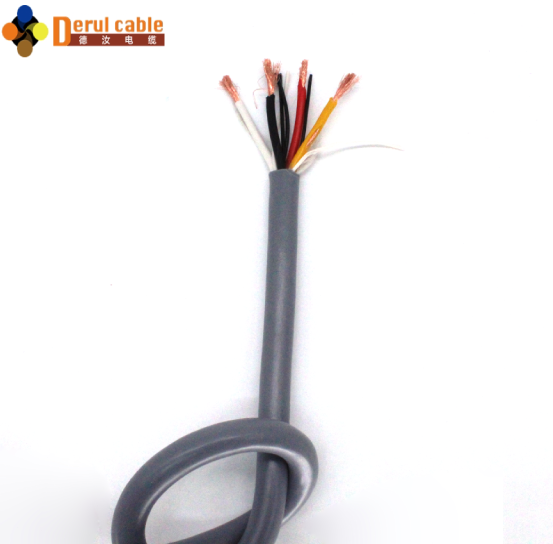

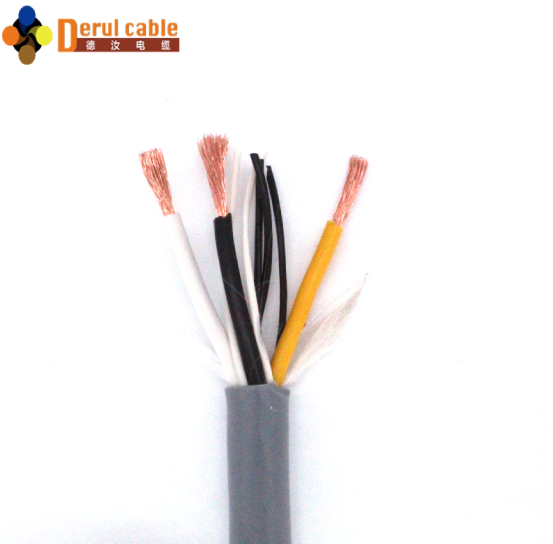

derul highly flexible twisted pair cable structure：

Conductor: Fine oxygen-free bare copper wire, multi-stranded soft conductor, in line with GB/T3956 (VDE0295/IEC60228) 60228 Class5 or 6 standard

Insulation: High-strength modified PVC or PE and other materials with excellent electrical insulation properties, color-coded, no duplication (can be customized and produced according to customer requirements)

Cabling: short-pitch layer stranding, composite cabling structure for 12 cores and above

Outer sheath: high strength and low viscosity special PVC composite material;

Sheath color: gray (default), black, orange, green (other colors can be customized according to customer requirements)

derul twisted pair cable technical parameters:

Rated voltage: <0.5mm2, 300/300V; ≥0.5mm2, 300/500V

Test voltage: 0.14mm2: 1200V, >0.14mm2: 1500V

Insulation resistance ≥20MΩ/km (20°C)

Minimum bending radius: mobile use: 7.5X cable outer diameter, fixed installation: 4X cable outer diameter

Operating temperature range: mobile use: -5℃~70℃, fixed installation: -20℃~80℃

ask:

Why are highly flexible drag chain cables resistant to bending times getting higher and higher?

answer:

There are no more than three reasons why high-flexibility drag chain cables have higher and higher bending resistance: the first reason is the advancement of technology; the second reason is that the cable drag chain testing field has been subdivided, and the application fields are different. The lifespan is different; the third reason is to reduce the test conditions.

ask:

What is the difference between drag chain cables and ordinary cables?

answer:

The main difference between drag chain cables and ordinary cables is that drag chain cables are suitable for mobile use and sports environments, while ordinary cables are suitable for fixed laying.

ADVANTAGES

Twisted pair cable is more suitable for situations that are prone to signal interference. The cable adopts a twisted pair structure, which can effectively reduce the interference between the wire pairs and ensure stable transmission of data and signals.

Highly flexible twisted pairs are used in drag chains and moving mechanical parts. When used together with drag chains, the effect is better.

CUSTOMIZATION CAPABILITY

Whenever standards are not enough!

Considering different working conditions and equipment to be applied to, Derul's products are highly customized. The high customization of our cables can make sure that our products can best meet the demands in your practical application. We welcome you to send an inquiry with specific requirements to our professional sales, and we will provide a technical sheet with drawings of the cable and detailed specifications to you, and of course, a competitive quotation will be send to you soon after your confirmation on the technical sheet. This can lead to your successful and efficient purchasing.

You don't need to worry about the time cost of your customized purchasing. As the original manufacturer, we provide quick-response and "solution at once" services. Comparing to less-efficient communication about technical and quality issues with trading companies, we give our customers efficient feedback to every question raised from them, this is possible because of the close interconnection between our workshop, engineers and sales people.

FAQ

Q: Is Derul Cable a manufacturer or a trading company?

A: Derul Cable is a special cable manufacturer based in Shanghai.

Q: Is the price negotiable?

A: Yes, the price is negotiable according to the purchase quantity.

Q: What is the regular MOQ for the cable?

A: Any quantity is okay to purchase for product in stock. For product that need to be manufactured after the order, the MOQ is usually 100-200 m per type.

Q: How can I get samples?

A: After payment for the potential cost including express freight and the confirmation of the cable's dimension and structure , we will arrange for the sample and send directly to your door.

Q: Is OEM or ODM service available?

A: OEM and ODM services are both available. You may provide us with your requirement and we will evaluate it to push forward.

Q: What is the regular production time?

A: For regular quantity, it usually requires about 15-25 days to produce.
