Supply industrial flexible drag chain cable CAT 5E

Supply industrial flexible drag chain cable CAT 5E | Chinese manufacturer

Specification

Basic structure	Conductor+Insulation+Jacket
Conductor	Plain Copper/ Tinned Copper
Insulation	EPR
Braid	Kevlar/ Plain Copper/ Tinned Copper
Jacket	PUR/TPE/PCP

Inquire Now Next Product

INTRODUCTION

derul industrial flexible cable network cable product introduction

derul industrial flexible cable network cable has electrical properties such as bending resistance, oil resistance, waterproofing, UV protection, and low temperature resistance. The cable is made of multiple ultra-fine finely twisted bare copper wires, 8 cores, 4 groups of twisted pairs and double shielding. It is especially suitable for EtherCAT and EtherNet/IP applications, seamless communication from the sensor/actuator level to the network, and frequent bending situations in industrial environments require shielding, impact-free and signal-stable information transmission, which can effectively resist electromagnetic wave interference. PUR sheath, resistant to various mineral oils, abrasions and chemical media。

derul industrial flexible cable network cable technical parameters:

Movement within drag chain:-20℃to 80℃

Operating temperature range:Movement within non-drag chain:-35℃to 80℃

Fixed laying without movement:-50℃to 80℃

Movement within drag chain:6.0X cable outer diameter

Bending radius:non-drag chain movement:5.0X cable outer diameter

Fixed laying without movement:4.0X cable outer diameter

Maximum acceleration:5 meters/second

Rated voltage:50 V

Characteristic impedance:100 Ohm+-15%

Conductor:Conforms to VDE 0295 Category 6 standard/24AWG

Insulation material:HD-PE

Core wire color:color distinction

Core wire stranding:4 pairs of core wires stranded

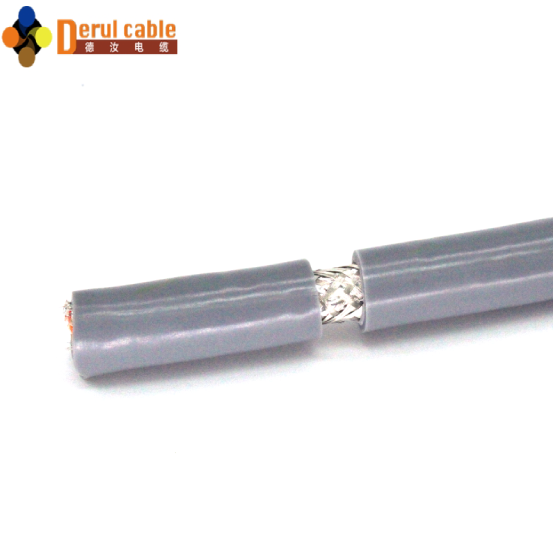

Shielding:Tinned copper mesh braid,optical coverage 90%

Outer sheath:polyether PUR,semi-extruded

Flame retardant:VW-2

Oil:Oil/cutting fluid/seawater and other liquids can be soaked

Halogen-free:Complies with EN 60754 standard

Lead-free:Compliant with 2011/65/EU(RoHS-II)standard

ADVANTAGES

Derul industrial flexible network cable has electrical properties such as bending resistance, oil resistance, waterproof, UV protection, and low temperature resistance.

CUSTOMIZATION CAPABILITY

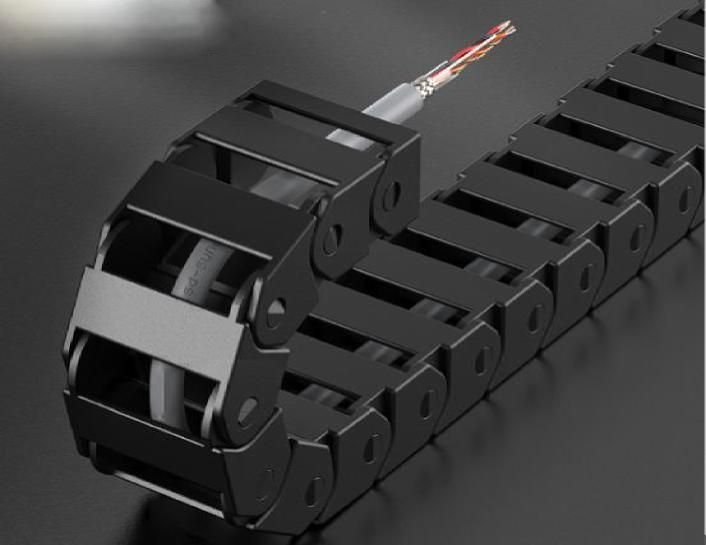

Whenever standards are not enough!

Considering different working conditions and equipment to be applied to, Derul's products are highly customized. The high customization of our cables can make sure that our products can best meet the demands in your practical application. We welcome you to send an inquiry with specific requirements to our professional sales, and we will provide a technical sheet with drawings of the cable and detailed specifications to you, and of course, a competitive quotation will be send to you soon after your confirmation on the technical sheet. This can lead to your successful and efficient purchasing.

You don't need to worry about the time cost of your customized purchasing. As the original manufacturer, we provide quick-response and "solution at once" services. Comparing to less-efficient communication about technical and quality issues with trading companies, we give our customers efficient feedback to every question raised from them, this is possible because of the close interconnection between our workshop, engineers and sales people.

FAQ

Q: Is Derul Cable a manufacturer or a trading company?

A: Derul Cable is a special cable manufacturer based in Shanghai.

Q: Is the price negotiable?

A: Yes, the price is negotiable according to the purchase quantity.

Q: What is the regular MOQ for the cable?

A: Any quantity is okay to purchase for product in stock. For product that need to be manufactured after the order, the MOQ is usually 100-200 m per type.

Q: How can I get samples?

A: After payment for the potential cost including express freight and the confirmation of the cable's dimension and structure , we will arrange for the sample and send directly to your door.

Q: Is OEM or ODM service available?

A: OEM and ODM services are both available. You may provide us with your requirement and we will evaluate it to push forward.

Q: What is the regular production time?

A: For regular quantity, it usually requires about 15-25 days to produce.
