Supply of flexible cables (highly flexible cables for drag chains) Derul Cable Manufacturer China

Supply of flexible cables (highly flexible cables for drag chains) Derul Cable Manufacturer

Specification

Basic structure	Conductor+Insulation+Jacket
Conductor	Plain Copper/ Tinned Copper
Insulation	EPR
Braid	Kevlar/ Plain Copper/ Tinned Copper
Jacket	PUR/TPE/PCP

Inquire Now Next Product

INTRODUCTION

Design characteristics and structural design of China Derul brand high flexible cable:

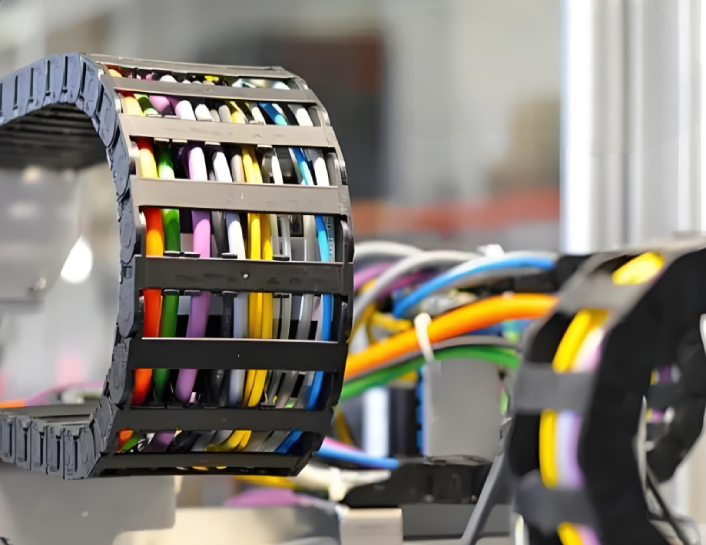

● High flexibility and resistance to reciprocating bending and movement: Optimized material selection to fit the working conditions and reinforced design of special flexible structure make the cable particularly suitable for drag chain applications that require frequent reciprocating bending and movement, allowing the cable to be used in drag chains, tank chains or similar mechanical parts Mobile power supply, control and data signal transmission connection installation applications under frequent bends.

● Anti-electromagnetic interference: With the high-density shielding mesh layer design of tinned copper wire braid, the cable has excellent anti-electromagnetic interference performance, ensuring that the cable can be widely installed and applied in conduction and situations that require undifferentiated changes;

● Strong signal transmission capability: For data signal transmission feedback applications in drag chain and tank chain systems, our company adopts a twisted-pair shielding structure design. The cable has strong signal transmission capability and anti-crosstalk, which can meet a wide range of signal transmission in drag chain situations. Install the app.

●Excellent environmental resistance: special modified elastomer materials/polyurethane PUR (TPU) materials/cold-resistant elastomer materials that fit the working conditions are designed on demand to ensure the performance of the cable drag chain system in working conditions of different complexity. Widely installed and applied;

Main parameters of China Derul brand high flexible cable:

Rated voltage: cross-section <0.5mm² 300/300V; cross-section ≥0.5mm² 300/500V;

Test voltage: 2000V;

Bending radius: 7.5xD (mobile installation);

Temperature range: -40~+90℃ temperature range can be customized (mobile installation);

Grounding protection mark: "G" contains yellow/green grounding protection mark; "X" does not contain yellow/green grounding protection mark;

Comply with certification: CE RoHS;

ADVANTAGES

Optimized material selection and structural design, Derugao flexible cables have excellent high flexibility and resistance to reciprocating bending and movement. The material selection and structural design fit the working conditions to ensure that the cables can be widely installed and applied in different complex and harsh working conditions. Unshielded, shielded, and twisted-pair shielded structures can be designed as needed, and single-layer sheath or double-layer sheath structures can be designed as needed to meet the cyclic reciprocating bending movement under the drag chain system to adapt to different operating speeds and accelerations. It is widely used in drag chains and tank chains.

CUSTOMIZATION CAPABILITY

Whenever standards are not enough!

Considering different working conditions and equipment to be applied to, Derul's products are highly customized. The high customization of our cables can make sure that our products can best meet the demands in your practical application. We welcome you to send an inquiry with specific requirements to our professional sales, and we will provide a technical sheet with drawings of the cable and detailed specifications to you, and of course, a competitive quotation will be send to you soon after your confirmation on the technical sheet. This can lead to your successful and efficient purchasing.

You don't need to worry about the time cost of your customized purchasing. As the original manufacturer, we provide quick-response and "solution at once" services. Comparing to less-efficient communication about technical and quality issues with trading companies, we give our customers efficient feedback to every question raised from them, this is possible because of the close interconnection between our workshop, engineers and sales people.

FAQ

Q: Is Derul Cable a manufacturer or a trading company?

A: Derul Cable is a special cable manufacturer based in Shanghai.

Q: Is the price negotiable?

A: Yes, the price is negotiable according to the purchase quantity.

Q: What is the regular MOQ for the cable?

A: Any quantity is okay to purchase for product in stock. For product that need to be manufactured after the order, the MOQ is usually 100-200 m per type.

Q: How can I get samples?

A: After payment for the potential cost including express freight and the confirmation of the cable's dimension and structure , we will arrange for the sample and send directly to your door.

Q: Is OEM or ODM service available?

A: OEM and ODM services are both available. You may provide us with your requirement and we will evaluate it to push forward.

Q: What is the regular production time?

A: For regular quantity, it usually requires about 15-25 days to produce.
