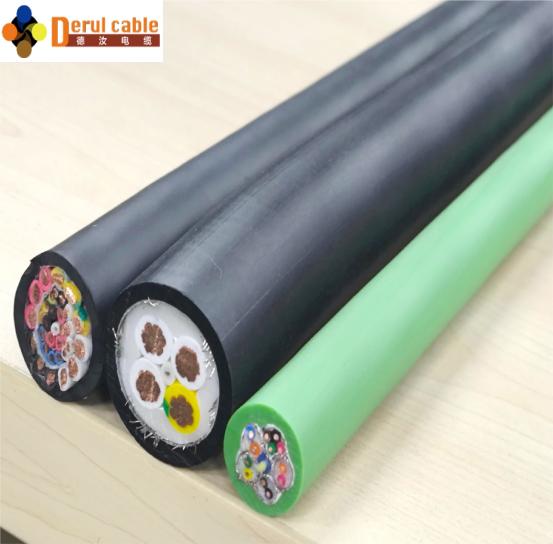

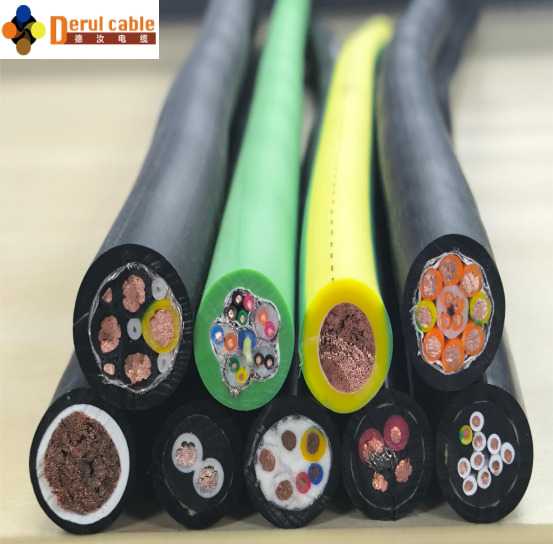

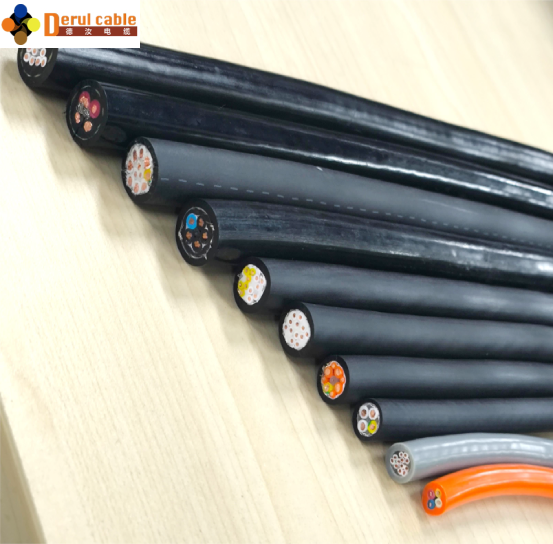

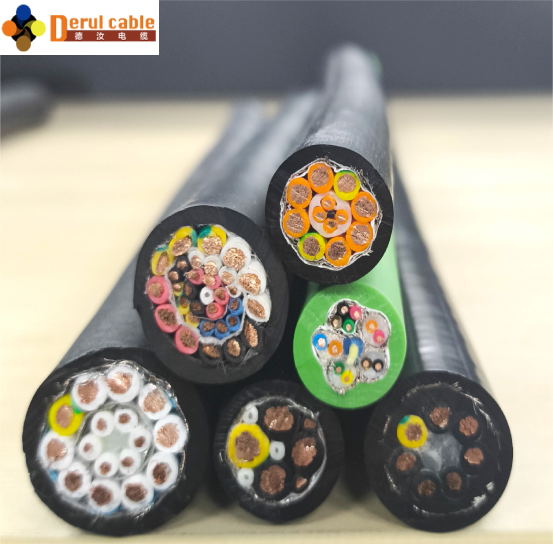

Special cable for robots (shielded, highly flexible, oil resistant, bending resistant, torsion resistant)

Specification

Basic structure	Conductor+Insulation+Jacket
Conductor	Plain Copper/ Tinned Copper
Insulation	EPR
Braid	Kevlar/ Plain Copper/ Tinned Copper
Jacket	PUR/TPE/PCP

Inquire Now Next Product

INTRODUCTION

Derul robot special cable/CY shielded cable|Application scope:

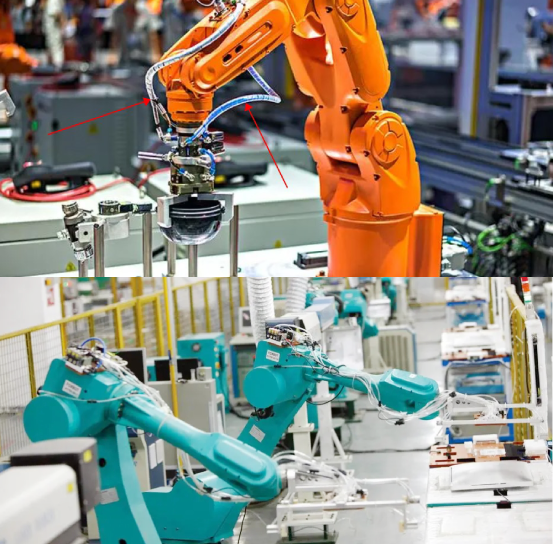

This special robotic control and signal cable is specially designed for use in robots and connecting operating tools that are subject to twisting and bending stresses.

Derul robot special cable/CY shielded cable|Product structure:

Conductor: Multiple strands of finely twisted bare copper wire conductor, conforming to DIN VDE 0295 Category 6, and IEC 60228 Category 6 conductor regulations

Insulation: special TPE insulated core

Color coding: below 0.34mm2 conforms to DIN 47100, above 0.5mm2 white continuous digital coding

Wire core structure: The wire core is twisted into a cable with optimal pitch and special isolation film

Sheath material: polyurethane special outer sheath

Sheath color: black

Derul robot special cable/CY shielded cable|Technical description:

Rated voltage: U,/U 300/500V

Test voltage: 0.34m㎡ and below 1.5KV 0.5mm and above 3.0KV

Minimum bending radius: 7.5x cable outer diameter

Temperature range: mobile installation: -30℃ to +80℃, fixed installation: -40℃ to +80℃

No harmful substances, compliant with RoHS standards

This product complies with EEC Regulation 73/23 (Low Voltage Domain) CE regulations

ADVANTAGES

·Chemical resistance

·High flexibility

·Oil resistant

·Meet the most stringent electrical and mechanical performance requirements

·Flexible, smaller bending radius

·Resistant to twisting and bending

·Self-extinguishing, flame retardant

※Special customization can be provided for customers

CUSTOMIZATION CAPABILITY

Whenever standards are not enough!

Considering different working conditions and equipment to be applied to, Derul's products are highly customized. The high customization of our cables can make sure that our products can best meet the demands in your practical application. We welcome you to send an inquiry with specific requirements to our professional sales, and we will provide a technical sheet with drawings of the cable and detailed specifications to you, and of course, a competitive quotation will be send to you soon after your confirmation on the technical sheet. This can lead to your successful and efficient purchasing.

You don't need to worry about the time cost of your customized purchasing. As the original manufacturer, we provide quick-response and "solution at once" services. Comparing to less-efficient communication about technical and quality issues with trading companies, we give our customers efficient feedback to every question raised from them, this is possible because of the close interconnection between our workshop, engineers and sales people.

FAQ

Q: Is Derul Cable a manufacturer or a trading company?

A: Derul Cable is a special cable manufacturer based in Shanghai.

Q: Is the price negotiable?

A: Yes, the price is negotiable according to the purchase quantity.

Q: What is the regular MOQ for the cable?

A: Any quantity is okay to purchase for product in stock. For product that need to be manufactured after the order, the MOQ is usually 100-200 m per type.

Q: How can I get samples?

A: After payment for the potential cost including express freight and the confirmation of the cable's dimension and structure , we will arrange for the sample and send directly to your door.

Q: Is OEM or ODM service available?

A: OEM and ODM services are both available. You may provide us with your requirement and we will evaluate it to push forward.

Q: What is the regular production time?

A: For regular quantity, it usually requires about 15-25 days to produce.
