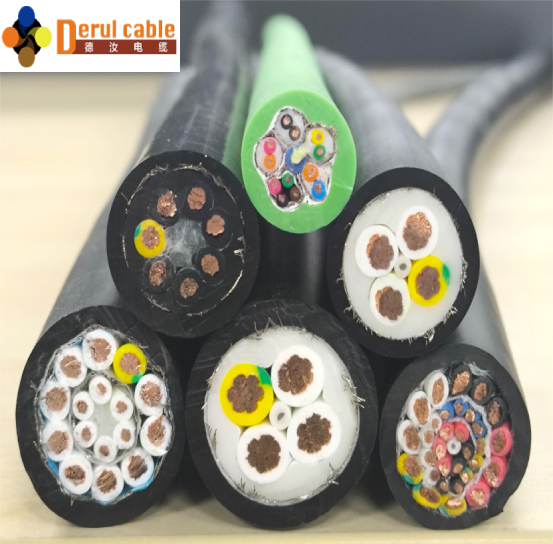

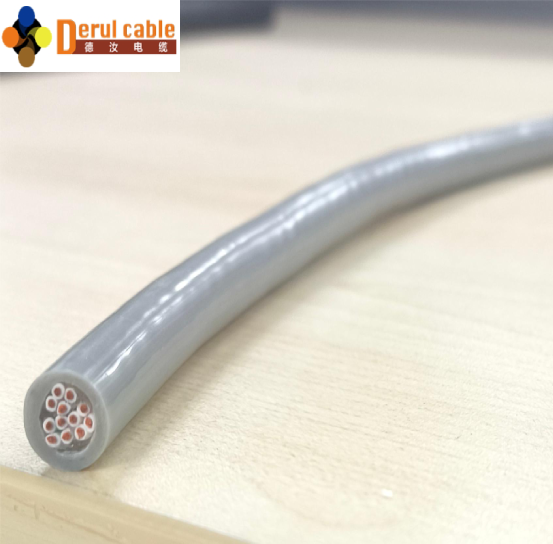

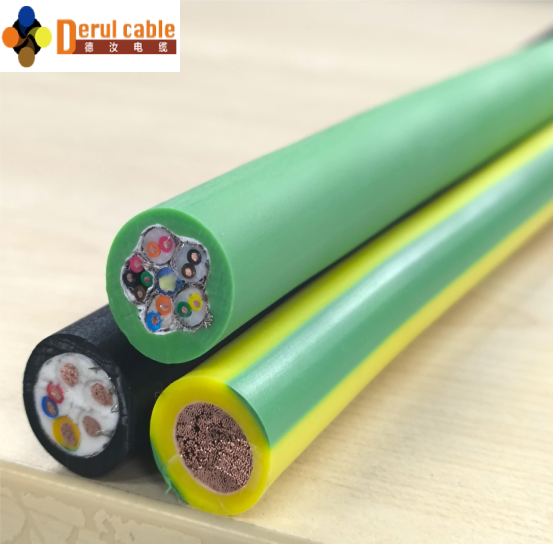

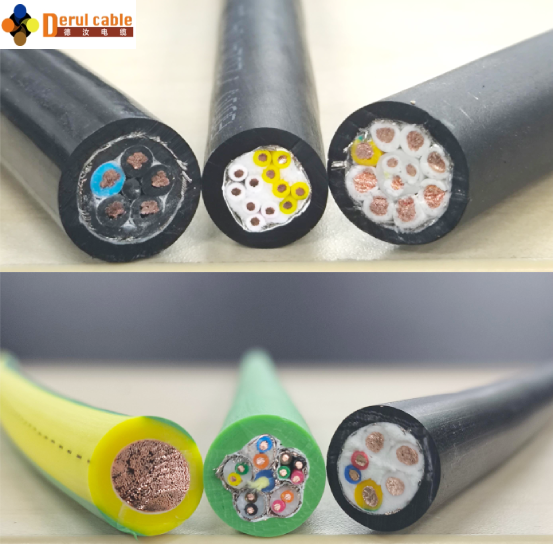

Sale pur combination industrial robot cable/robot arm cable-Shanghai Derul Cable Factory Direct Sales

pur combination industrial robot cable/robot arm cable-Shanghai Derul Cable Factory Direct Sales

Specification

Basic structure	Conductor+Insulation+Jacket
Conductor	Plain Copper/ Tinned Copper
Insulation	EPR
Braid	Kevlar/ Plain Copper/ Tinned Copper
Jacket	PUR/TPE/PCP

Inquire Now Next Product

INTRODUCTION

Shanghai Derul brand PUR combination robot cable|Application scope:

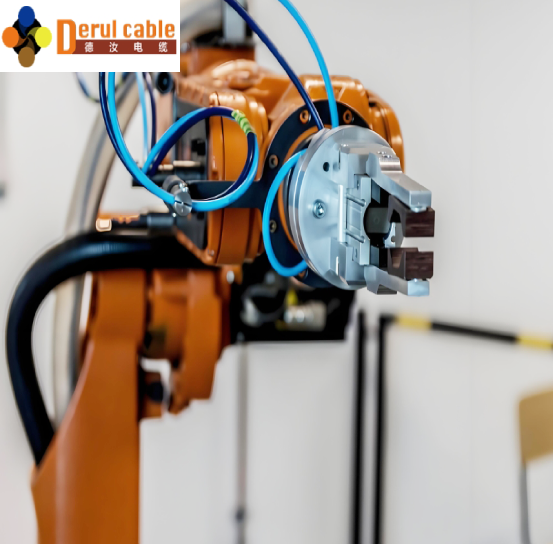

·For extremely high loads ·Completely oil-resistant ·Indoor and outdoor applications, radiation resistant ·Particularly suitable for robots or three-dimensional motion applications ·Robots, logistics equipment, spindle drives.

Derul brand PUR combination robot cable|Product structure:

Conductor: Fine bare copper stranded wire with high bending strength (according to EN 60228 standard)

Insulation Material: High Mechanical Travel TPE Blend

Inner sheath: thin polymer tape wrapped around the core wire bundle

Total shielding: High flexural strength tinned copper wire braided shield, 85% optical coverage

Outer sheath: low-viscosity, TPE-based compound, particularly wear-resistant and highly flexible, suitable for drag chains

Operating temperature range: (mobile installation) -25℃ to +80℃, bending radius is 10xd

Operating temperature range: (fixed laying) -40℃ to +80℃, bending radius is 5xd

Maximum speed: (twisting) 180°/s

Maximum acceleration: 60°/S2

Travel Distance: Suitable for robotic and 3D motion applications

Twist: 180°±10°C per 1 meter of cable length

Radiation resistance: high

Derul brand PUR combination robot cable|Technical description:

Rated voltage: 300/500V (in line with DIN VDE 0245 standard

Test voltage: 2000V (in compliance with DIN VDE 0281-2 standard)

Oil resistance: completely oil-resistant (according to DIN EN 50363-10-2 standard), Class 3

Flame retardant properties: Comply with IEC 60332-1-2, CEI 20-35, FT1 standards

Silicone-free: Contains no corrosive silicone

ADVANTAGES

For torsional loads

·PUR outer sheath

·Scratch resistant and flame retardant

·Resistant to hydrolysis and microorganisms

※Special customization can be provided for customers

CUSTOMIZATION CAPABILITY

Whenever standards are not enough!

Considering different working conditions and equipment to be applied to, Derul's products are highly customized. The high customization of our cables can make sure that our products can best meet the demands in your practical application. We welcome you to send an inquiry with specific requirements to our professional sales, and we will provide a technical sheet with drawings of the cable and detailed specifications to you, and of course, a competitive quotation will be send to you soon after your confirmation on the technical sheet. This can lead to your successful and efficient purchasing.

You don't need to worry about the time cost of your customized purchasing. As the original manufacturer, we provide quick-response and "solution at once" services. Comparing to less-efficient communication about technical and quality issues with trading companies, we give our customers efficient feedback to every question raised from them, this is possible because of the close interconnection between our workshop, engineers and sales people.

FAQ

Q: Is Derul Cable a manufacturer or a trading company?

A: Derul Cable is a special cable manufacturer based in Shanghai.

Q: Is the price negotiable?

A: Yes, the price is negotiable according to the purchase quantity.

Q: What is the regular MOQ for the cable?

A: Any quantity is okay to purchase for product in stock. For product that need to be manufactured after the order, the MOQ is usually 100-200 m per type.

Q: How can I get samples?

A: After payment for the potential cost including express freight and the confirmation of the cable's dimension and structure , we will arrange for the sample and send directly to your door.

Q: Is OEM or ODM service available?

A: OEM and ODM services are both available. You may provide us with your requirement and we will evaluate it to push forward.

Q: What is the regular production time?

A: For regular quantity, it usually requires about 15-25 days to produce.
